The ASAHI Gaia® Series comprises guide wires specifically designed for Chronic Total Occlusion (CTO) procedures,
offering high penetration capabilities while maintaining excellent torqueability.
These guide wires incorporate ACT ONE technology and feature a low tip load to enhance deflection and torque response.
| Model | Tip Load | Tip Radiopacity | Coating | Tip Shape | Length (cm) | Diameter (inch/mm) | Radiopaque Segment (cm) | Spring Coil Length (cm) |
|---|---|---|---|---|---|---|---|---|

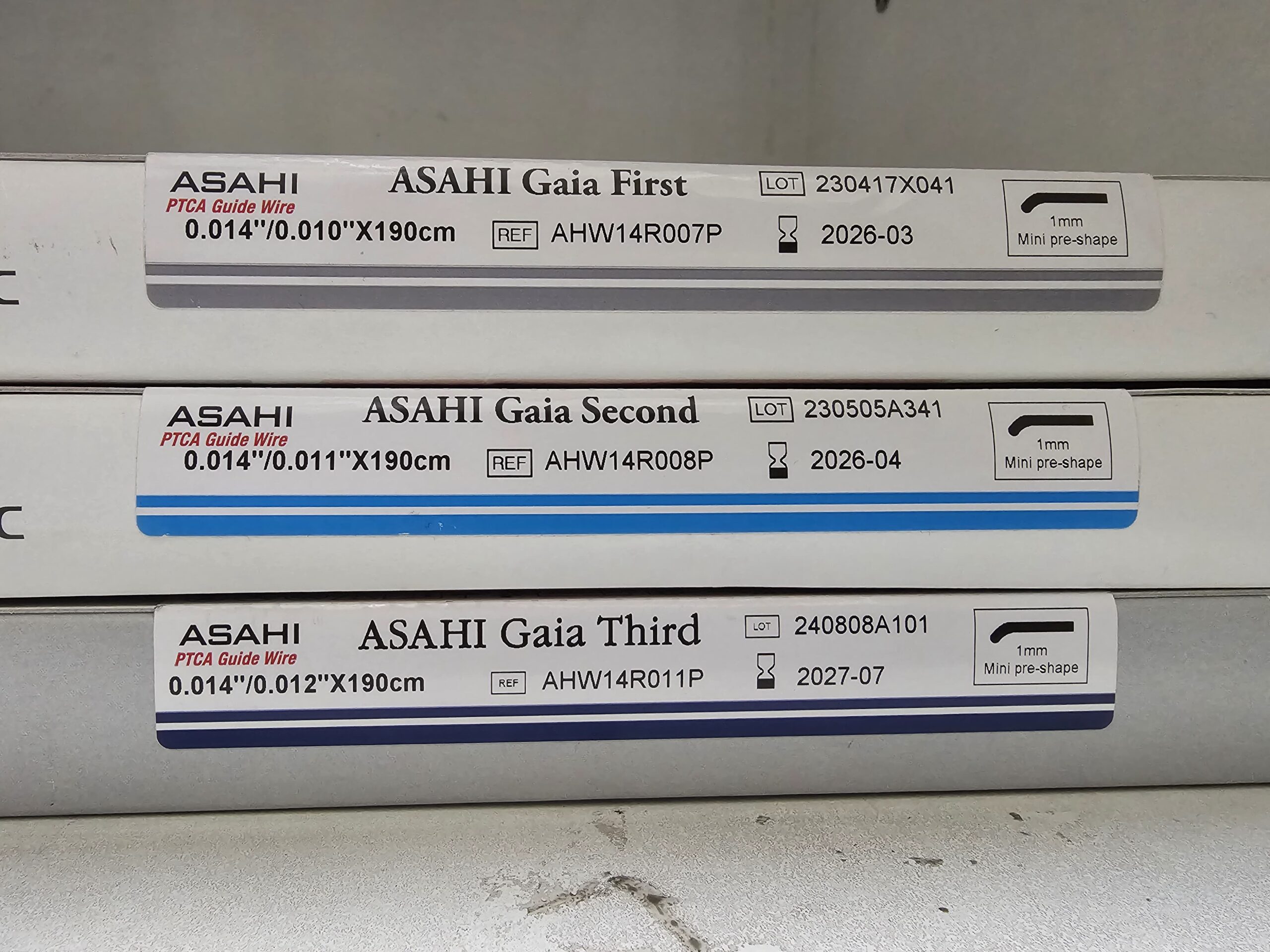

| ASAHI Gaia First | 0.8 gf | 15 cm | Hydrophilic 40 cm with uncoated distal tip | Pre-Shape | 190 | 0.010/0.014 (0.26/0.36) | 15 | 15 |
| ASAHI Gaia Second | 1.5 gf | 15 cm | Hydrophilic 40 cm with uncoated distal tip | Pre-Shape | 190 | 0.011/0.014 (0.28/0.36) | 15 | 15 |
| ASAHI Gaia Third | 3.5 gf | 15 cm | Hydrophilic 40 cm with uncoated distal tip | Pre-Shape | 190 | 0.012/0.014 (0.30/0.36) | 15 | 15 |
